CNC Jewellery Manufacturing Machinery
OPDEL CNC jewellery machinery covers the steps after melting and casting: faceting, decorative cutting and multi-operation machining. Seven models span bangle and ring faceting, bead and ball faceting, fancy cuts on wire, tube and chain, strip cutting, and 5-axis turning-milling-centering, for jewellery manufacturers producing repeat designs in gold and other precious metals.
Each machine is CNC-controlled, so a design programmed once repeats across a batch. Pair them with our induction melting furnaces, continuous casting and rolling mills to equip a full line. Prices are quoted per configuration. Request a quote.
Seven CNC machines, one production line
Faceting, cutting and 5-axis machining for bangles, rings, beads, chain, wire and strip. Every model is configured for your market before the offer.
FacetingDF-M10 T1
CNC Diamond Faceting Machine for Bangles & Rings
A dedicated CNC faceting cell for bangle and ring makers who need the same diamond-cut pattern on every piece of a batch. Two spindles, one vertical and one horizontal, plus a 10-position automatic tool changer let one program carry a design from first facet to last.
Best for: Batch diamond-cut faceting of bangles and rings
- Vertical and horizontal spindles on one machine
- 10-tool automatic tool changer (ATC)
- CNC control for consistent geometry from batch to batch
- Built specifically for bangle and ring faceting
- Bangle faceting
- Ring faceting
- Decorative jewellery profiles
- Precision diamond-cut surface patterns
FacetingDF-M5
Compact 5-Axis CNC Diamond Faceting Machine (Mini)
The smaller sibling for faceting work: 5-axis CNC control in a compact frame that fits workshops where floor space is limited. It handles round and oval bangle and ring forms, including V-Kada surfaces, and repeats the programmed facet pattern across production runs.
Best for: Space-limited workshops faceting rings and bangles
- 5-axis CNC machining platform
- Compact footprint for tight production floors
- Processes round and oval profiles
- Supports V-Kada and other decorative surfaces
- Repeatable faceting across production batches
- Gold and precious-metal bangles
- Rings
- V-Kada surfaces
- Round and oval jewellery profiles
- Decorative jewellery components
FacetingSB-2H
CNC Single Ball Faceting Machine, Double Head
Built for one job: faceting metal beads and balls. Two heads facet at the same time, raising output, while CNC control repeats the programmed pattern so every bead in a strand matches. Suitable for bead sizes from 2 mm to 10 mm.
Best for: Faceted beads and balls, 2–10 mm
- Double-head configuration for simultaneous faceting
- Bead sizes from 2 mm to 10 mm
- CNC-controlled, repeatable faceting geometry
- Designed for beads, balls and spherical components
- Jewellery beads
- Metal balls
- Faceted spherical components
- Faceted bead designs
CuttingFRC-H
CNC Fancy Round Cut Machine for Wire, Pipe & Chain
A horizontal CNC machine for putting fancy cuts and facets on round stock: jewellery wire, tube, pipe and chain elements such as ball-barrel links. Holding the part horizontally keeps it positioned while the cutter works, so decorative patterns stay uniform from one component to the next.
Best for: Fancy-cut patterns on wire, tube and chain
- Horizontal CNC cutting and faceting layout
- Processes wire, tube, pipe and round-profile chain components
- Suited to ball-barrel chain elements
- Machining parameters reproduced across production cycles
- Jewellery wire
- Metal tubes and pipes
- Round-profile chain components
- Faceted tubular components
- Fancy-cut decorative profiles
CuttingSF-3
CNC Strip Cutting & Faceting Machine
Cuts metal strip to repeatable dimensions and adds decorative facets in the same controlled process. Where manual strip work drifts from piece to piece, the SF-3 replays programmed parameters each cycle, keeping profiles consistent for strip-based jewellery parts and decorative components made in repeated quantities.
Best for: Cut and faceted strip-based components
- CNC-controlled strip cutting and faceting
- Repeatable cutting dimensions and profiles
- Decorative facets and patterns on strip
- Tooling selected to the strip, thickness and profile
- Jewellery metal strips
- Precision-cut metal profiles
- Faceted metal elements
- Repetitive strip-based jewellery parts
MachiningFX-1TMC
5-Axis CNC Turning, Milling & Centering Machine
Turning, milling and centering on one 5-axis CNC platform, so complex ring and bangle components move through fewer separate setups and less manual handling. A vertical 40,000 RPM spindle and 20-tool automatic tool changer cover a wide range of operations in one program.
Best for: Multi-operation machining of complex rings and bangles
- 5-axis CNC platform
- Turning, milling and centering in one workflow
- Vertical 40,000 RPM spindle
- 20-tool automatic tool changer (ATC)
- Industrial CNC control; full technical specification on request
- Ring manufacturing
- Bangle production
- Turned jewellery profiles
- Milled decorative details
- Custom and complex jewellery components

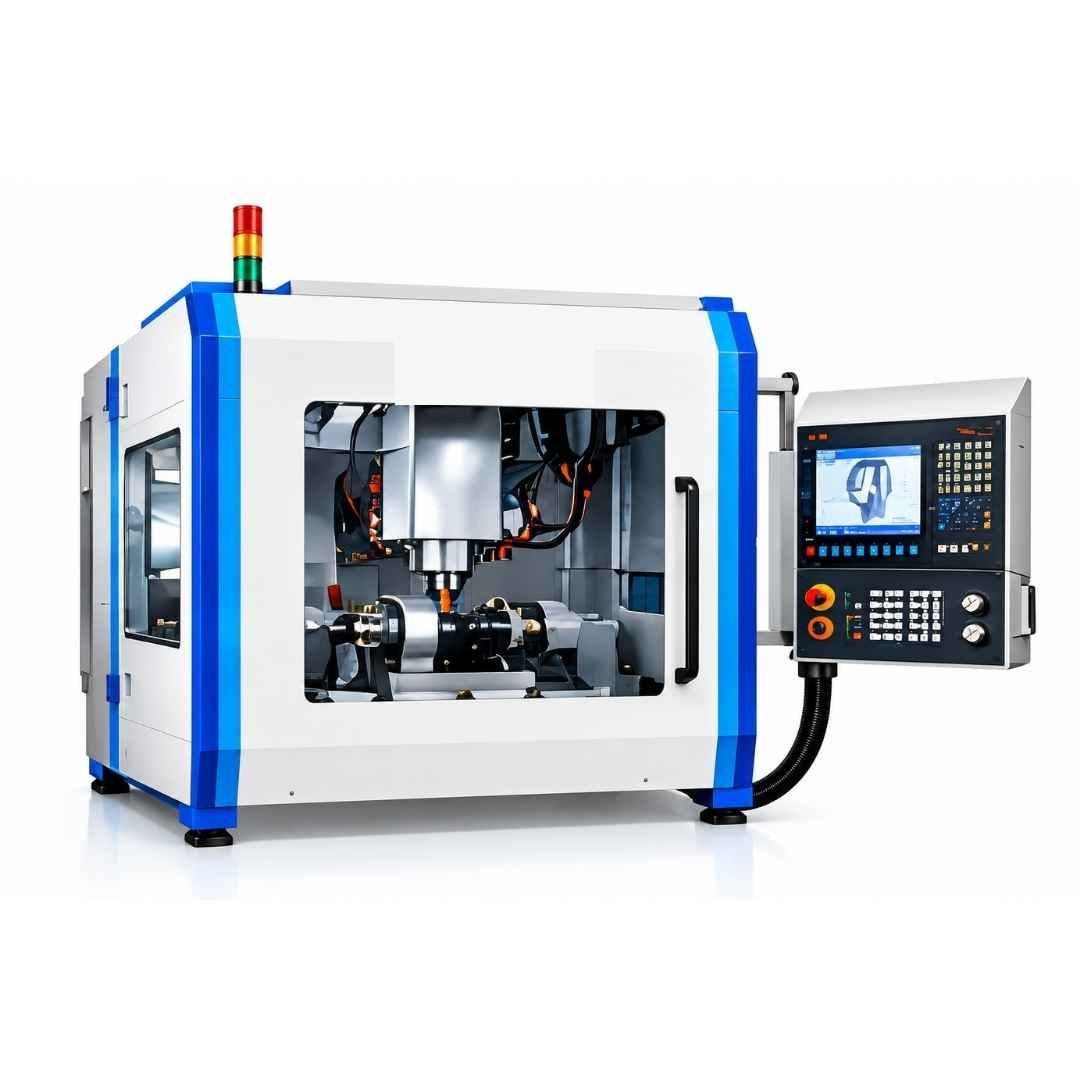

MachiningFX-2TMC
Advanced 5-Axis CNC Turning, Milling & Centering Machine
The advanced model in the TMC family. Like the FX-1TMC it combines turning, milling and centering in a single 5-axis CNC workflow; it is positioned for demanding production of intricate rings, bangles and bracelet components where consistency across repeated runs matters most.
Best for: Demanding, high-precision multi-operation work
- Advanced 5-axis CNC machining platform
- Turning, milling and centering in one CNC workflow
- Intricate turned and milled profiles
- Positioned for demanding professional jewellery applications
- Precision rings
- Bangles and bracelet components
- Complex jewellery profiles
- Centered precision components
- Repeat-production designs
Which machine fits your workshop?
Match the job on your bench to the machine built for it.
| Your job | Model | Why |
|---|---|---|
| Diamond-cut bangles and rings in batches | DF-M10 T1 | Vertical + horizontal spindles, 10-tool ATC |
| Bangle and ring faceting where floor space is tight | DF-M5 | Compact 5-axis; round, oval and V-Kada profiles |
| Faceted beads and balls | SB-2H | Double head; beads 2–10 mm |
| Fancy cuts on wire, tube, pipe or chain | FRC-H | Horizontal layout for round stock |
| Cut and faceted metal strip | SF-3 | Cutting and faceting in one CNC process |
| Complex rings and bangles needing turning, milling and centering | FX-1TMC | 40,000 RPM vertical spindle, 20-tool ATC |
| The most demanding multi-operation work | FX-2TMC | Advanced 5-axis TMC platform |
Not sure? Send us a drawing or sample photo via contact and we will recommend a model.
Frequently asked questions
What is the difference between the DF-M10 T1 and the DF-M5?
Both are CNC diamond faceting machines for bangles and rings. The DF-M10 T1 has vertical and horizontal spindles and a 10-tool automatic tool changer for batch production. The DF-M5 is a compact 5-axis machine for workshops with limited floor space, covering round, oval and V-Kada profiles.
How do the FX-1TMC and FX-2TMC differ?
Both combine turning, milling and centering on a 5-axis CNC platform for rings, bangles and complex components. The FX-2TMC is the advanced model, positioned for more demanding precision applications. For the FX-1TMC, the published callouts include a vertical 40,000 RPM spindle and a 20-tool ATC. Full technical specifications for either model are available on request.
What bead sizes can the SB-2H facet?
The SB-2H is suitable for beads from 2 mm to 10 mm. Its two heads facet simultaneously for higher output.
Which machine is used for chain and tube faceting?
The FRC-H. Its horizontal CNC layout is designed for fancy cuts on jewellery wire, tubes, pipes and round-profile chain components such as ball-barrel elements. For flat metal strip, choose the SF-3.
Why use CNC instead of manual faceting?
CNC control stores the machining parameters and repeats them every cycle. You get consistent cut geometry and facet patterns across a production batch, with less piece-to-piece variation than manual processing.
How do I get a price and what is confirmed before the offer?
Prices are not listed because each machine is configured to order. Electrical configuration, tooling, technical documentation and installation requirements are confirmed for your destination market and application before the commercial offer is finalised. <a href="https://opdel.com/contact/">Request a quote</a> with your country, the metal and the parts you make. See also our <a href="https://opdel.com/services/">services</a>.
Tell us what you make. We will configure the machine.
Share the piece, metal and batch size. We confirm electrical configuration, tooling and installation for your country before quoting.
