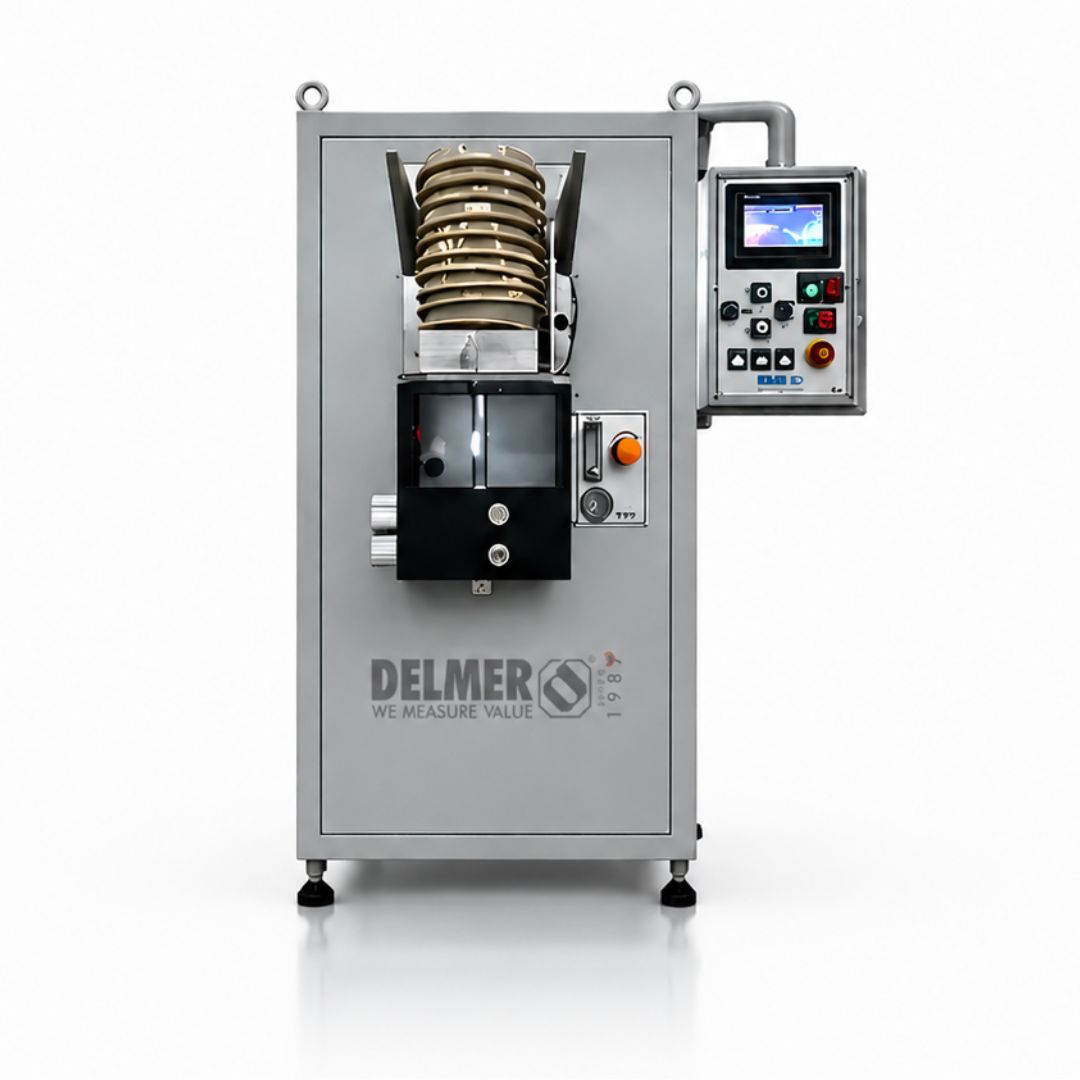

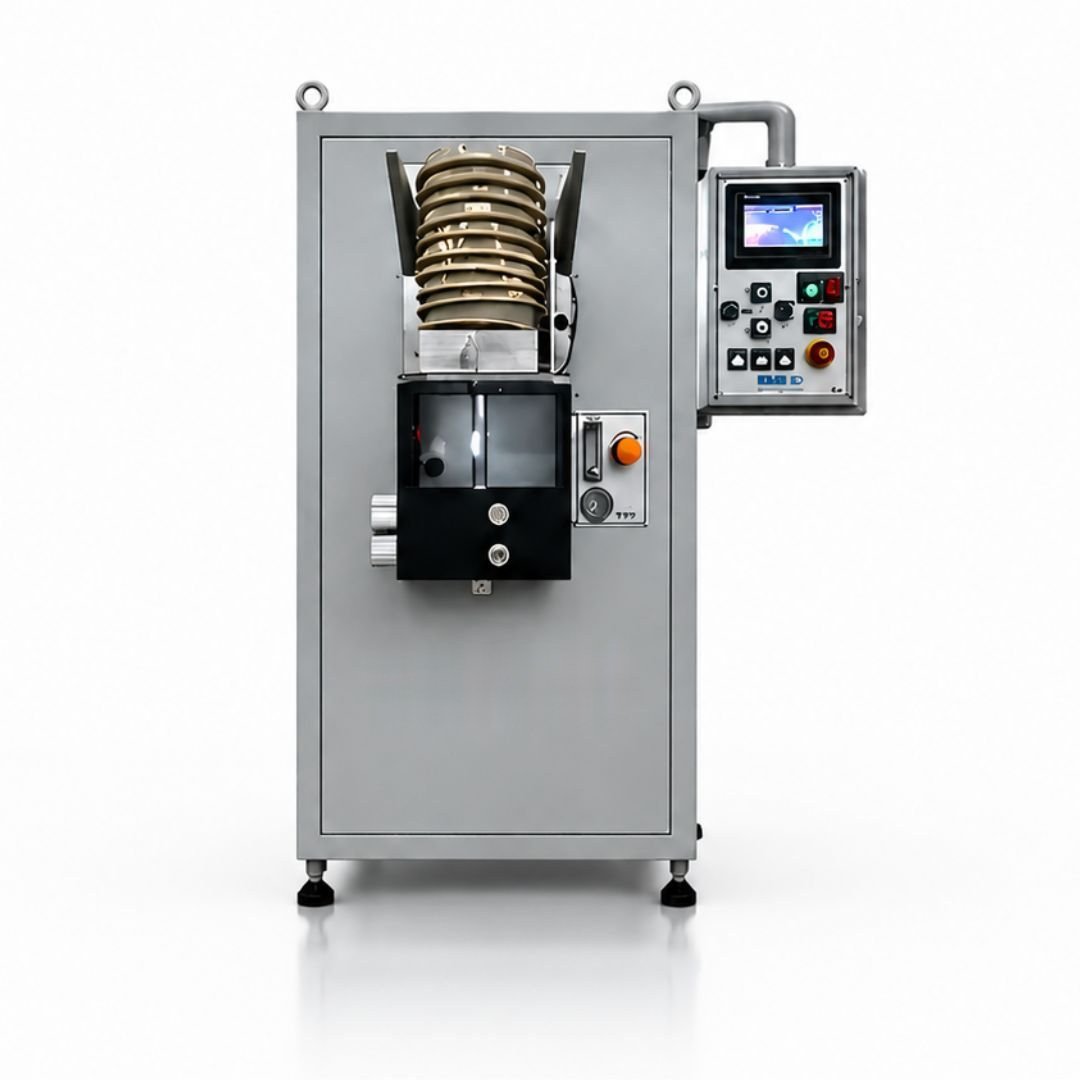

The “ETNA” series bring together the range of continuous casting furnaces with capacity of the crucible from 10 up to 140 kg. The user is helped in his work from a graphical interface and display. Access to the machine body is secured by a tubular frame and movable panel for easy maintenance. The drive system for profile is made aluminum body is completely cooled and driven by a stepper motor coupled to a planetary gear, it should be integrated with the casting chamber. All this system is closed by a cover easy to remove: the access to equipment melting (Ceramic jacket, chain bushings, thermocouples) is very fast minimizing the time for replacement. The cooling socket, in harmony with the equipment has been refined so that it can offer the best possible performance. The heart of the machine consists of a mid-frequency system completely designed and built by the Technical Opdel. These furnaces are often used for special profiles where the amount of metal to be melted is high. It can use accessories such as shears or saws for the cutting of profile, trays for cooling the same. In some case an additional tilting head can fill the empty crucible directly with liquid metal in order to reduce the stop of the production.
| Description | |
| Panel control | Membrane keyboard with LCD graphic display and thermal printer for printing working cycles data. |
| Heating System | Electric induction with no audible frequency |
| Pulling System | With gearmotor, frequency and step adjustable, towing wheels and guide rollers |
| Gas protection | By inert Gas |
| Cooling | Long cooling socket for the die and regulation through bronze cooling rings |
| Optional | Charging tilting head, saw or shear with holders, scarps saver, short cooling socket with water tank for profile rapid cooling. |
| Model | Power | Crucible Capacity | Profile Sizes | Overall Sizes | Temperature |
| cD 10 | 15,0 Kw | 11,2kg Au 18kt 14,0Kg Au 24Kt 7,6Kg Ag 925 | n. 1 Wire ø 8÷40mm n. 4 Wire ø 8÷12mm Plate (60÷75)x(5÷10)mm Tube ø 14+40 sp/th>=2 | 1050x815xh1750mm 310 Kg | 1.250°C 1.400°C (opt) |
| cD 15 | 20,0 Kw | 16,2kg Au 18kt 20,0Kg Au 24Kt 11,0Kg Ag 925 | n. 1 Wire ø 8÷40mm n. 5 Wire ø 8÷12mm Plate (60÷90)(15÷10)mm Tube ø 14+40 sp/th>=2 | 1050x815xh1750mm 360 Kg | 1.250°C 1.400°C (opt) |
| cD 20 | 22,0 Kw | 20,6kg Au 18kt 25,6Kg Au 24Kt 14,0Kg Ag 925 | n. 1 Wire ø 8÷40mm n. 6 Wire ø 8÷12mm Plate (75÷100)(15÷10)mm Tube me 14+40 sp/th>=2 | 1050x1015xh1950mm 390 Kg | 1.250°C 1.400°C (opt) |
| cD 30 | 24,0 Kw | 30,8kg Au 18kt 38,3Kg Au 24Kt 21,0Kg Ag 925 | n. 1 Wire ø 8÷40mm n. 7 Wire ø 8÷12mm Plate (75÷115)x(5÷10)mm Tube ø 14+40 sp/th>=2 | 1050x1015xh1950mm 400 Kg | 1.250°C 1.400°C (opt) |
| cD 50 | 30,0 Kw | 51,4kg Au 18kt 64,0Kg Au 24Kt 34,8Kg Ag 925 | n. 1 Wire ø 8÷40mm n. 8 Wire ø 8÷12mm Plate (115÷125)(15÷10)mm Tube ø 14÷40 sp/th>=2 | 1050x1015xh1950mm 465 Kg | 1.250°C 1.400°C (opt) |

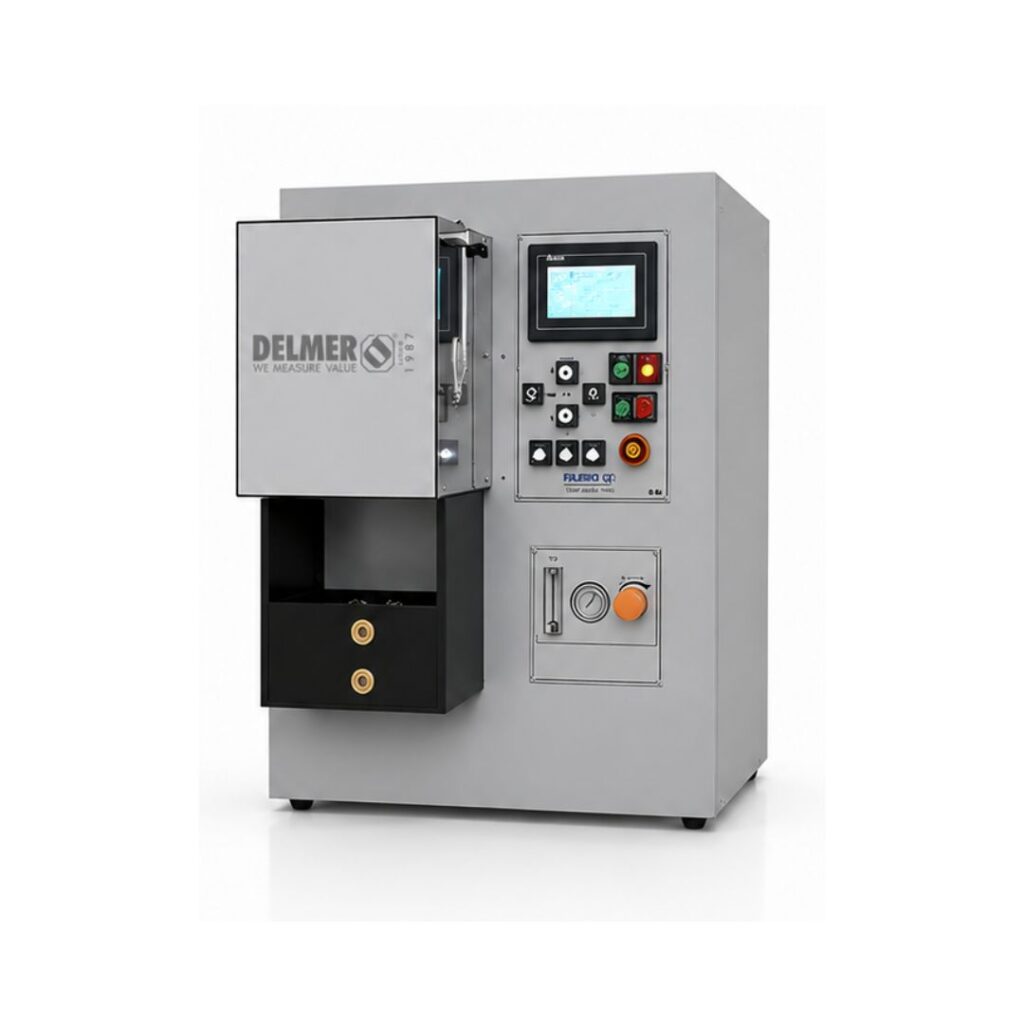

Volcano 3000/5000 Models
Volcano 07/12 Models
The "Vulcano" series is the range of continuous casting furnaces with reduced crucible capacity. It is essential to divide the Vulcano 3000-5000 models and Vulcano 7/12 models, because the first is provided "bench", also matching hooves or feet while the second is provided with a floor structure that allows the use of a roll holder to create profiles on a larger scale. The user interface consists of a keyboard with numeric display Access to the machine body is secured by a tubular frame and movable panel for easy maintenance. The drive system for profile is made aluminium and its completely cooled and driven by a stepper motor coupled to a planetary gear, it should be integrated with the casting chamber. All this system is closed by a cover easy to remove: the access to equipment melting (ceramic jacket, chain bushings, thermocouples) is very fast minimizing time for replacement. The cooling glass, in harmony with the equipment has been refined so that it can offer the best possible performance. The heart of the machine consists of a middle frequency system completely designed and built by the Technical Opdel Department.
Model | Power | Crucible Capacity | Profile Sizes | Overall Sizes | Temperature |
cD 3 | 8,5 kw | 3,6 kg Au 18 kt 2,5 kg Ag 925 | Filo ø min. 4 - max 25mm nr. 2 ø 6-8-10 - nr.4 ø 4 Piatto min. 10x5 - max 50x5 Tubo min. 12x1,5 - max 30x5 | 760x920x800h 160kg | |
cD 5 | 8,5 kw | 5,3 kg Au 18 kt 3,6 kg Ag 925 | Filo ø min. 4 - max 25mm nr. 2 ø 6-8-10 - nr.4 ø 4 Piatto min. 10x5 - max 50x5 Tubo min. 12x1,5 - max 30x5 | 760x920x800h 160kg | |
cD 7 | 9,5 kw | 5,3Kg Au 18Kt 6,6kg Au 24kt 3,6Kg Ag 925 | n. 1 Wire ø 6÷15mm n. 2 Wires ø6÷12mm Plate (45÷50)x(5÷10)mm Tube øe 12÷35 sp/th>=1,5 | 800x900xh1500mm 275 K | 1.250°C 1.400°C (opt) |
cD 12 | 12,5 kw | 10,2Kg Au 18Kt 12,7Kg Au 24kt 6,9kg Ag 925 | n. 1 Wire ø 8÷25mm n. 2 Wires ø 8÷12mm Plate (45÷60x(5÷10mm) Tube øe 12÷35 sp/th>=1,5 | 800x900xh1500mm 280 Kg | 1.250°C 1.400°C (opt) |
