Series "FR"

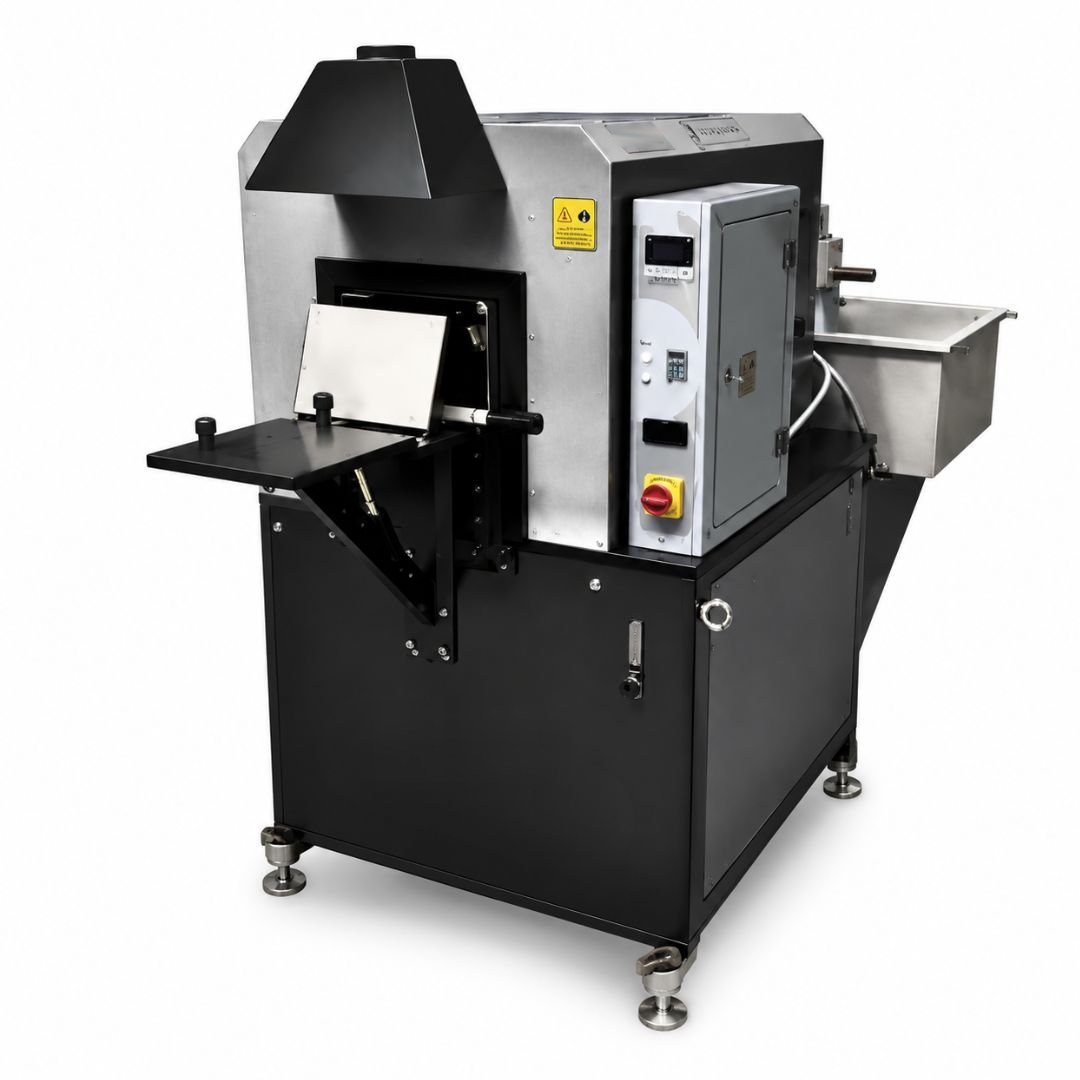

Our annealing furnaces are made by a tubular frame and panels with Louvres for air exchange. Tubular system makes general maintenance interventions easier. Resistence and special refractory insulating panels, with high thermal features, make up heating muffles. Special stainless steel heating chambers can resist strong temperature changes. Nozzles inside the chamber let protection gas in. A burner placed in front of the chamber avoids entrance of oxygen and improves de-oxidation. A stainless steel shovel lies inside. When metal is annealed, you just push the pale till the bottom of cooling chamber and throw it in the water tub for instantaneous cooling (or let it Lie in the cooling chamber to cool, taking some time). Treated material is recovered from the tub manually or by a pneumatic piston

View Models & Detail
Accessories Optional

Optional :

  • Hydrogen Nitrogen Mixer
  • Ammonia filter
  • Ammonia pressare regulator
  • Nitrogen pressare regulator
  • Hydrogen pressare regulator
  • Ammonia dissociator
Model aD 010 aD 020 aD 030 aD 040 aD 050
Size mm
kg		 923 x 1800 x1380
290 (350 with diss.)		 1094 x 2200 x1560
420 (480 with diss.)		 1094 x 2200 x1560
440 (500 with diss.)		 1480 x 2620 x1890
663 (720 with diss.)		 1480 x 2800 x1950
730 (790 with diss.)
Voltage V
Power kw 8,0
10.5 (With diss.)		 10,5
13.0 (With diss.)		 12,0
14.5 (With diss.)		 18,0
20.5 (With diss.)		 24,0
26.5 (With diss.)
T Max C°
Chamber Dimension mm 200 x110 x 875 250 x 150 x1185 290 x 150 x1185 450 x 150 x 1185 450 x210 x 1185
Length Heading Zone rilril 400 720 720 720 720
n°zone 1 1 1 2 2
Cooling Chamber mr11 475 559 559 684 684
Reducing atmosphere Ilmin N+3H
15-20		 N+3H
16-20		 N+3H
17-20		 N+3H
18-20		 N+3H
19-20


Accessories Optional
NH3 Dissociator Only In Order Face
60 kg -2.5 kw
N+3H Mixer 0 0 0 0 0
Pneumatic unloading – 0 0 0 0

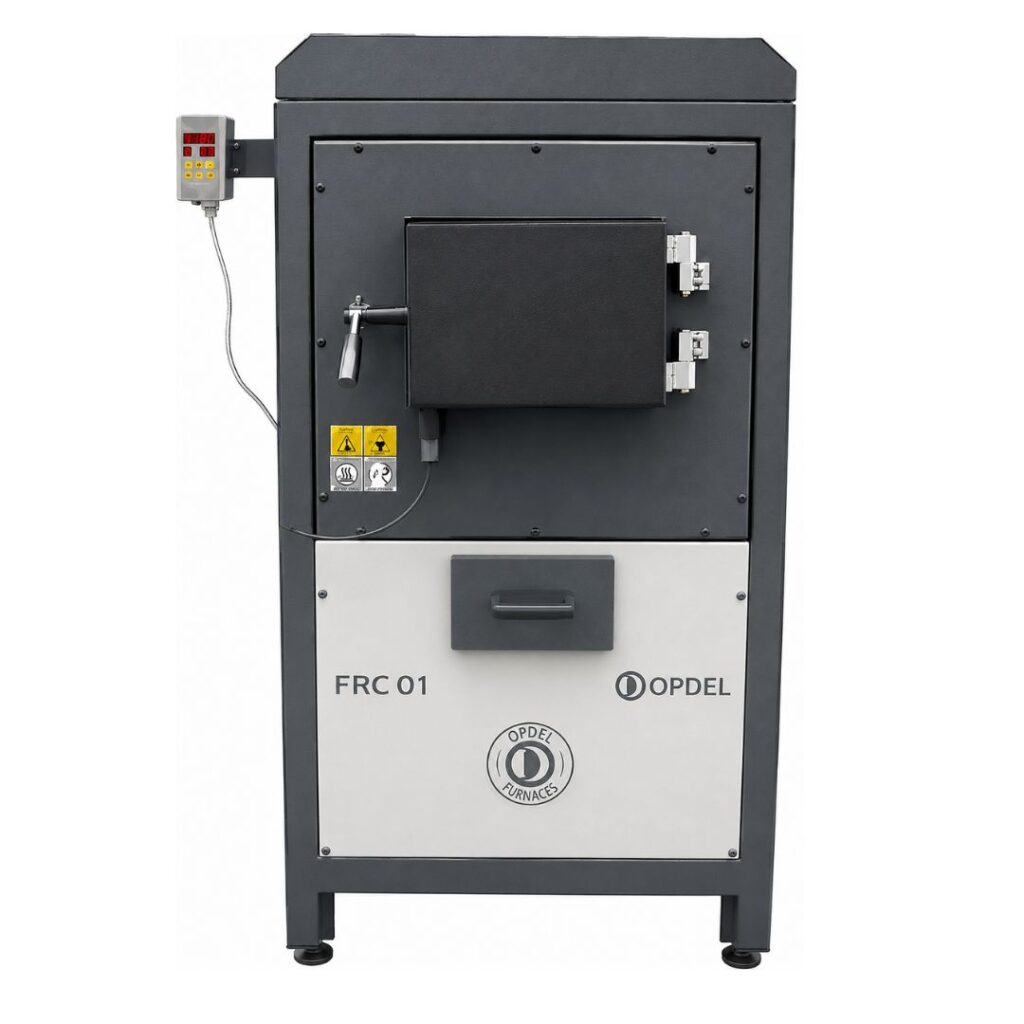

Range of muffle electric furnaces used for preparation of casting cylinders.The adjustable temperature up to 850°C allows the wax dissolution and firing the plaster inside the hollow cylinder.The furnaces are equipped in the bottom of the chamber with a grill and drawer to recover the wax.

Series "FN"

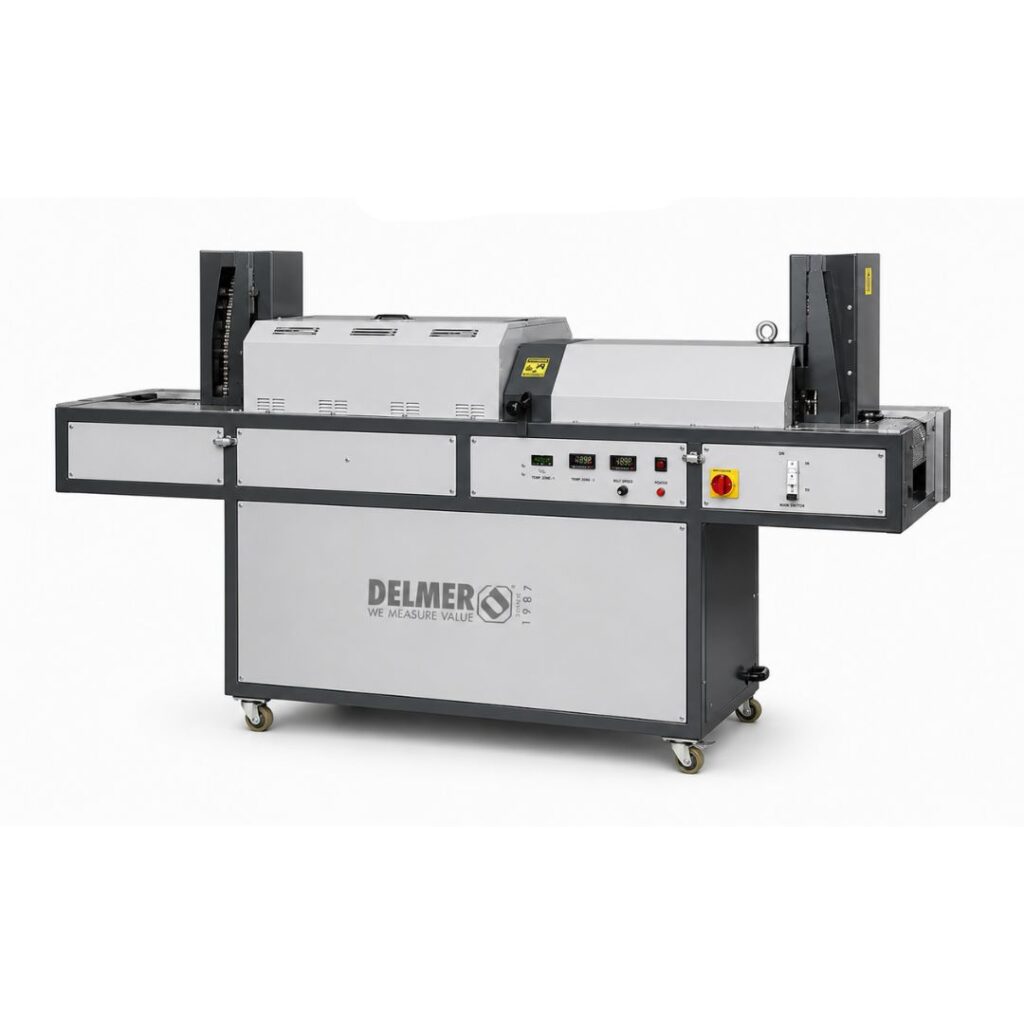

Our furnaces are equipped with 2 heating chambers which work with separated heating zones with separate setting of temperatures. Furnaces are made by a tubular frame and panels with louvres for air exchange. Tubular system makes general maintenance interventions easier. Resistence and special refractory insulating panels, with high thermal features, make up heating muffles. Special stainless steel heating chamber can withstand strong temperature changes. Internal sliding blocks avoid wear and tear of chamber because of belt running. Cooling chamber is cooled by water. A flange keeps together the chambers and a nozzle on it let gas go inside. Two burners, placed in front of both extremities of tunnel, avoid entrance of oxygen and improves de-oxidation.

Optional :

  • Chain guide
  • Hydrogen Nitrogen Mixer
  • Ammonia filter
  • Ammonia pressare regulator
  • Nitrogen pressare regulator
  • Hydrogen pressare regulator
  • Ammonia dissociator
  • (Braket values are optional)
Model bD 020 bD 030 bD 040 bD 050
Size mm
kg		 700 x 3050 x1530
390 (450 with diss.)		 700 x 4030 x1530
580 (640 with diss.)		 700 x 44600 x1530
600 (660 with diss.)		 700 x 5030 x1530
660 (520 with diss.)
Voltage V 3 x 400V (3x230V Optional)
Power Inv 11.5
13.5 (with diss.)		 13.3
15.8 (with diss.)		 16.8
19.3 (with diss.)		 20.3
22.8 (with diss.)
T Max C° 950 (1100 Optional)
Chamber
Dimension		 mm 80 x 40
100 x 50		 80 x 40
100 x 50		 80 x 40
100 x 50		 80 x 40
100 x 50
Length Heading Zone mm 600 800 1000 1200
n°zone 1 2 2 2
Cooling Chamber mm 985 1600 1600 1800
Reducing
atmosphere		 I/min N+3H
10-20		 N+3H
10-20		 N+3H
10-20		 N+3H
10-20


Accessories Optional
NH3 Dissociator Only In Order Face
60 kg -2.5 kw
Chain Loader                                                                     0
Belt Types
