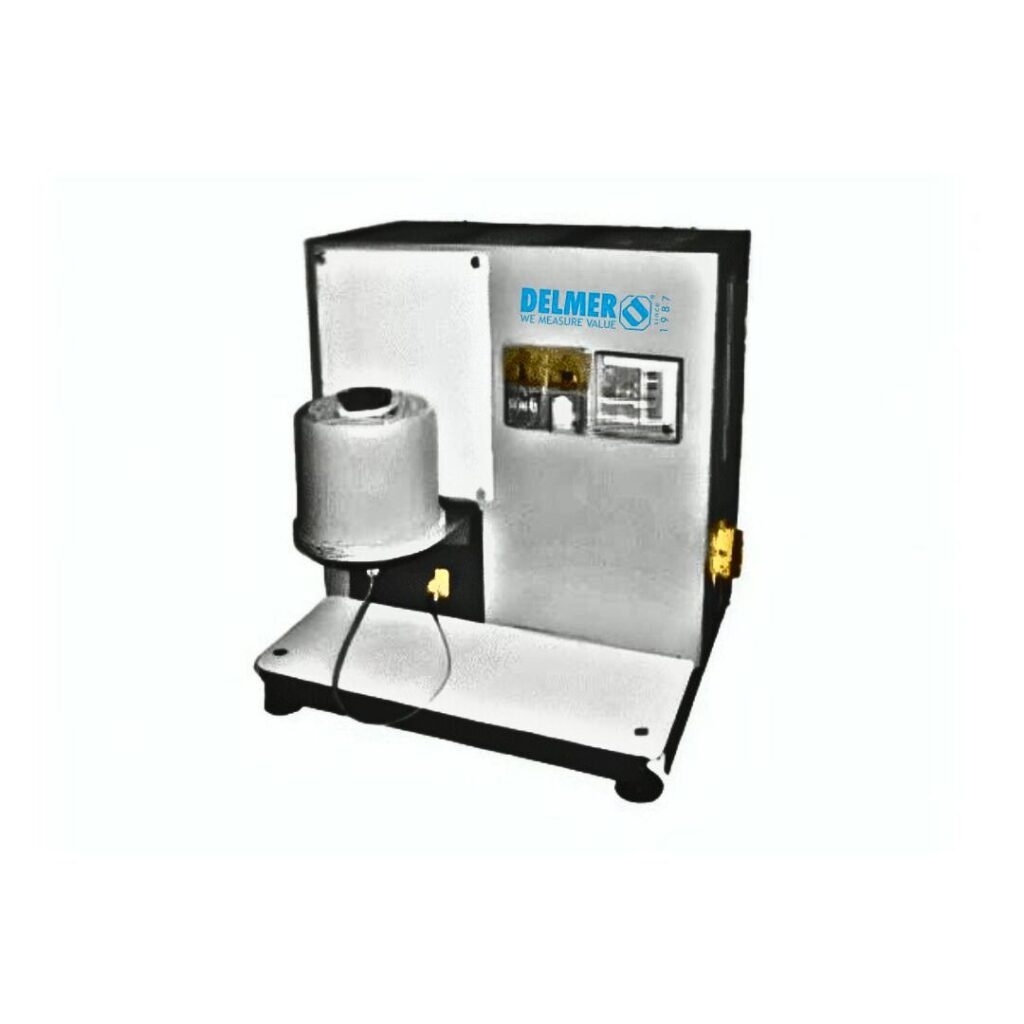

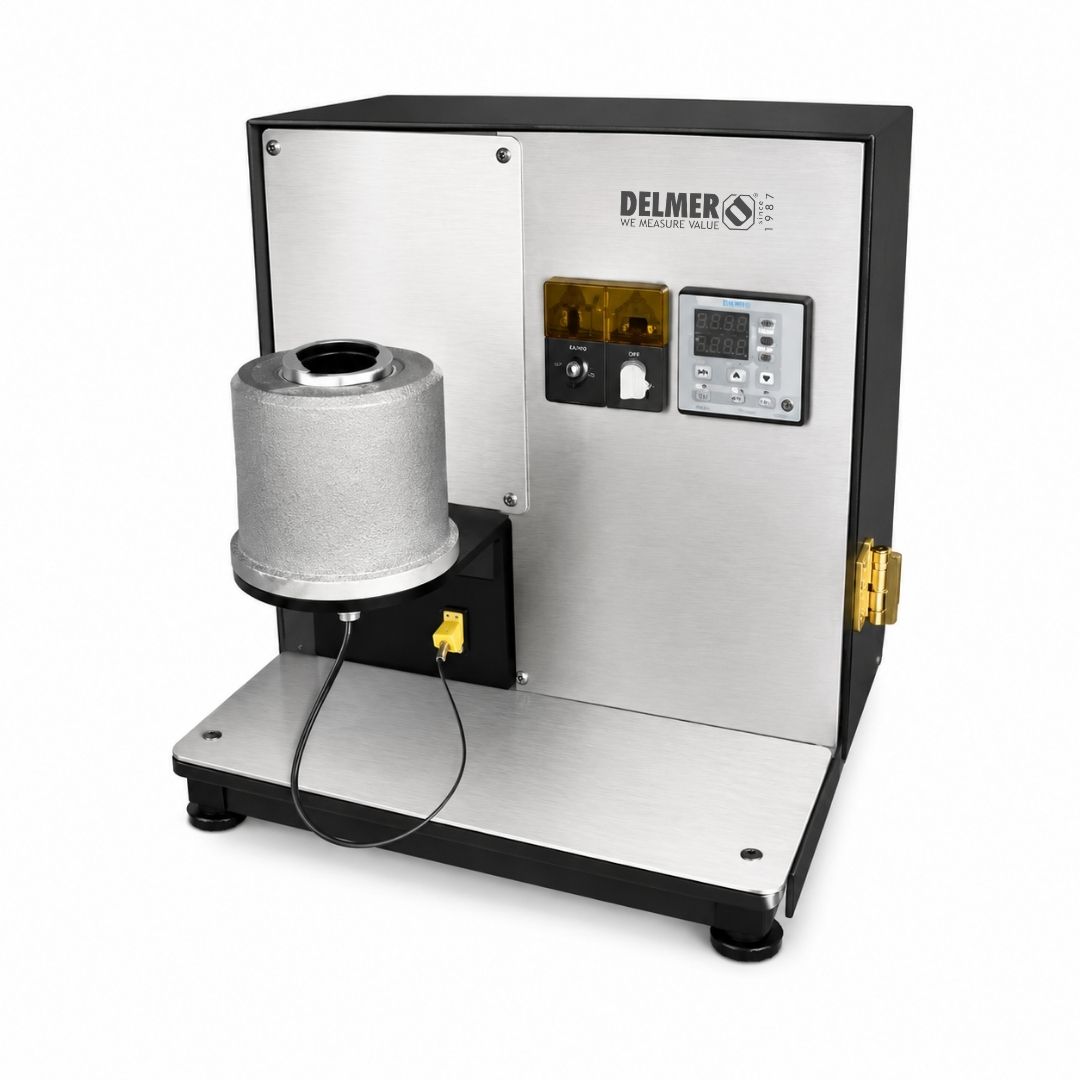

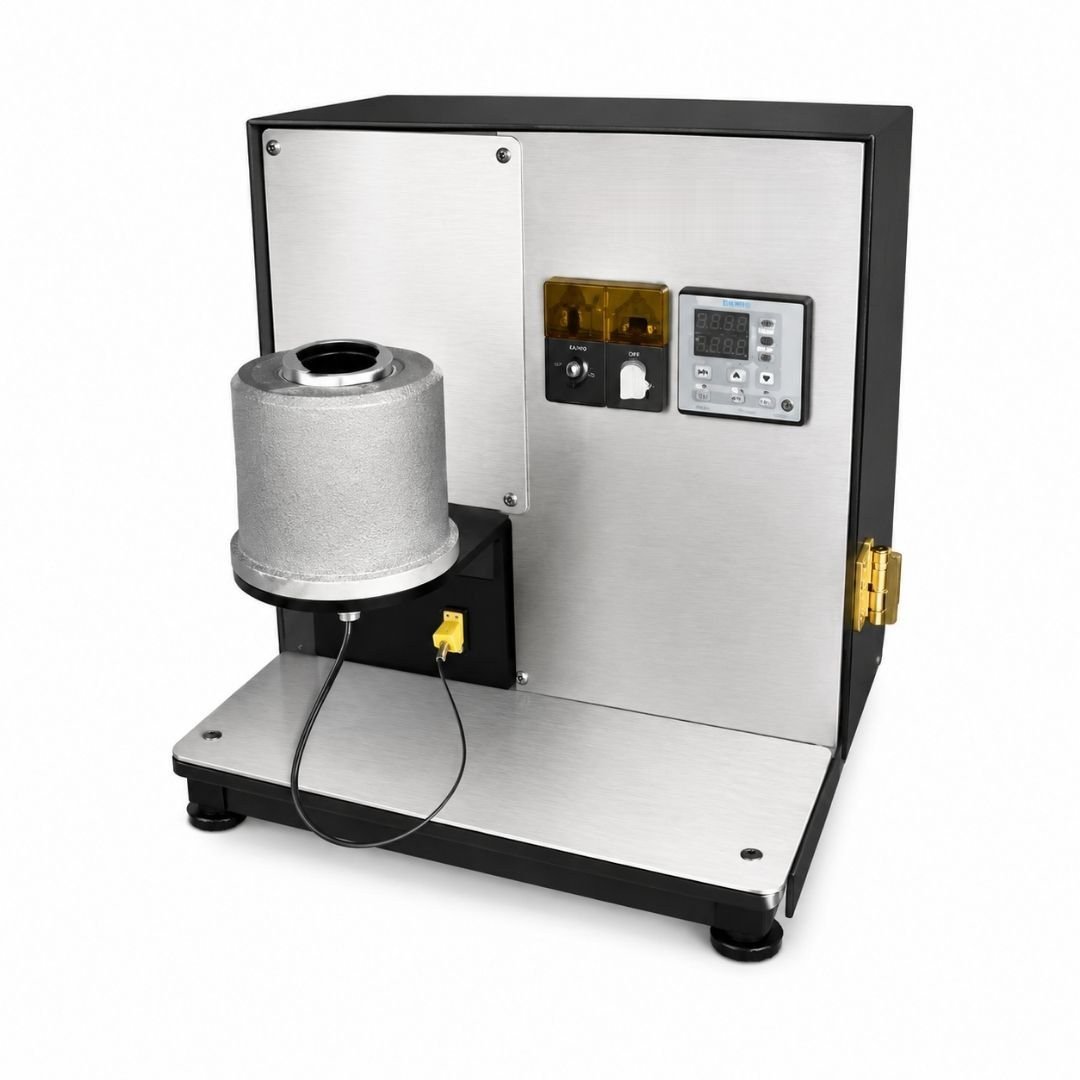

Bench Melting Furnace FS01

Bench Melting Furnace FS01

 Membrane Keyboard Digital Display

 Membrane Keyboard Digital Display

Technical Details

Mod.

dBF01

Overall dimensions

mm

500x480x585

Weight

kg

50

Crucible capacity

kg

1,54 kg Au 24kt
1,24 kg Au 18kt
0,84 kg Ag 925

Max Temperature

C

1150 C

Water Flow

Lt/min

3

Installed Power

kW

1,5

Power supply

v

230V single phase

Thermocouple position

Under crucible

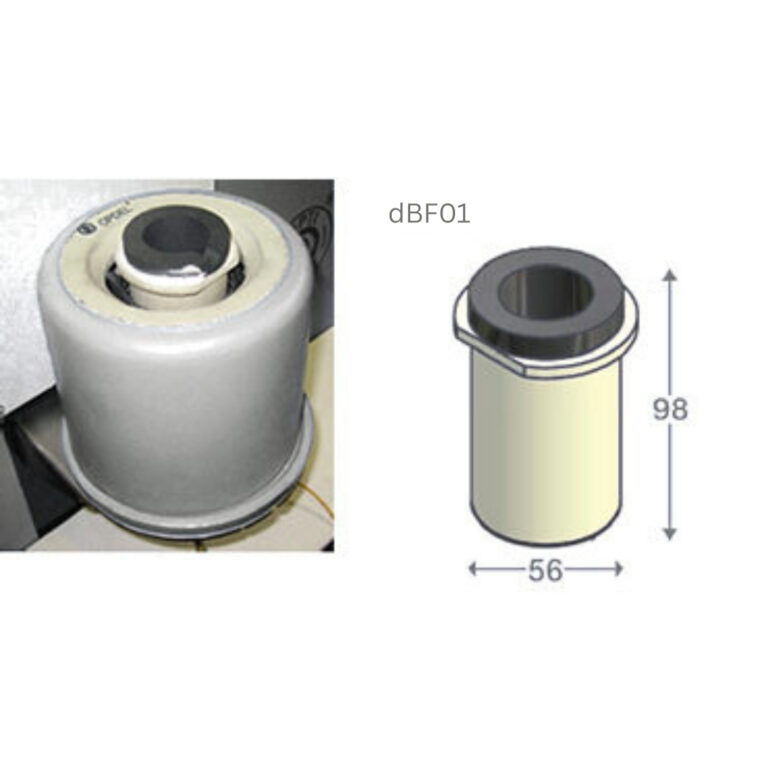

Crucible type

With fixed ceramic jacket

Temperature control

Membrane Keyboard digital thermoregulator

Series "ST"

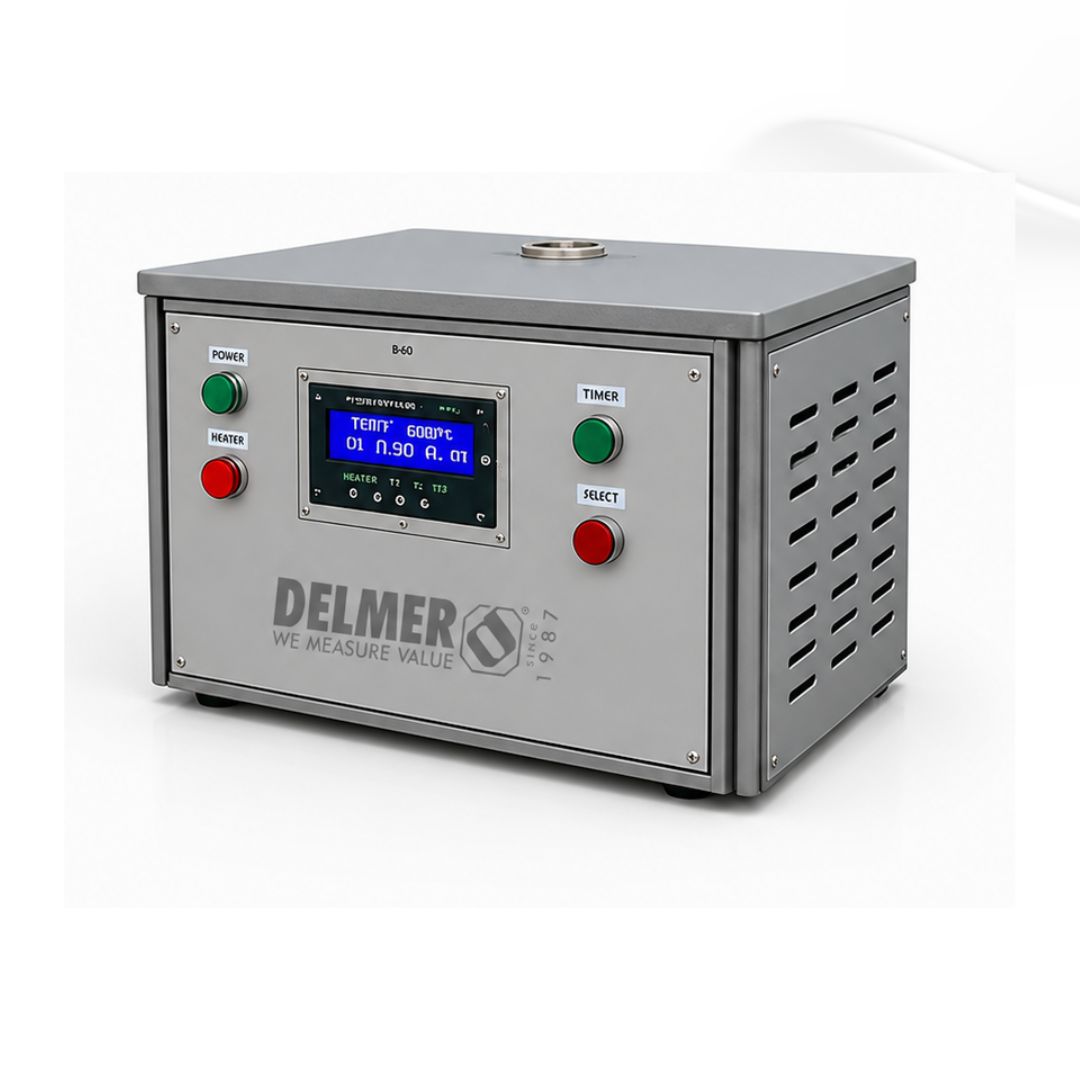

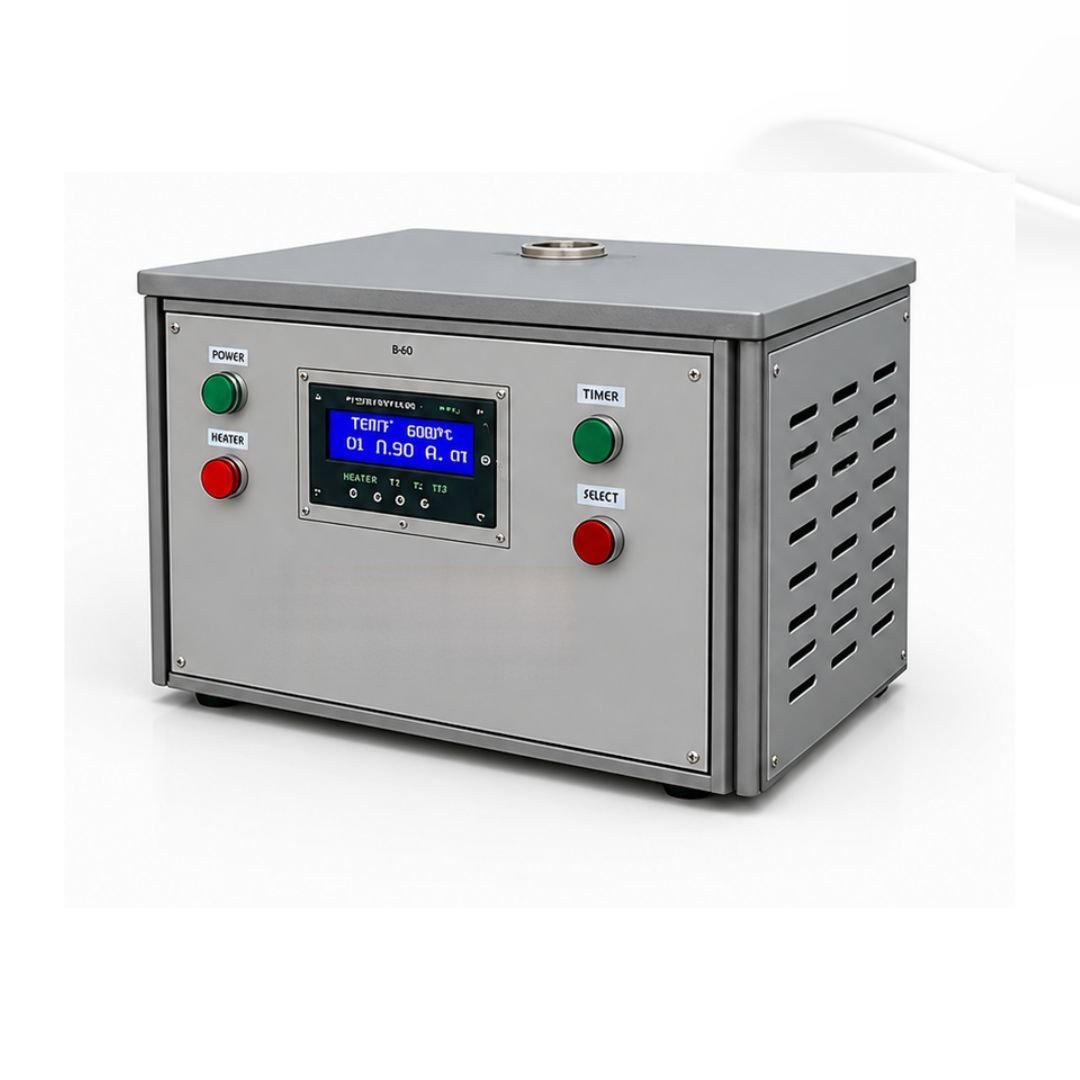

Option I: Series “ST”

Option II: Series “ST Plus”

Description : - The new generation of static induction furnaces can be divided into two ranges: ST and ST Plus The ST serie has a simple digital thermostat that allows you to set the melting temperature of the metal and to see the real one. The ST Plus serie has a touch screen panel that allows the user to select various parameters, including different methods of reading temperatures: standard "K" thermocouple at the bottom of the crucible, thermocouple external "S " or "K", or optical pyrometer. These can be applied as an option. The newest generation circuit has a power and control board with SMD technology, which could achieve working cycles more profitable and faster than previous systems with worn crucibles. A novelty is the single-phase 230V power supply for the ST123 model that also has the peculiarity of being able to use crucibles of 1kg, 2kg and 3kg without intervening in any parameter of the oven. An interesting option is the casting chamber vacuum applied to the machine that allows you to do wax casting directly next to the furnace.

get technical details

Tecnical Details

MOD

iD123

iD04

iD05

iD10

iD12

iD18

Overall Dimension

mm

470X510X920

520X 560 X970

Weight

kg

63

66

66

71

71

78

Crucible                Au 750

kg

2,8

4,8

6,1

12

13,5

15

Capacity               Ag 925

1,9

3,2

4,1

8,1

9,2

10,2

Max Temparature

oc

1150

(1600 Optional w ith Optica l Pyrometer)

Min. Water Flow

I/min

4

I   Install Power

kW

3,5

6

7

11

12

15

Power Supply

Vo lt

230

3×400

3×230

3×400

3x 230

3 x400

POWER

kW

3

5,5

6,5

10

11

14

FREQUENCY

Start of machine

operation to reach

Set Temperature

kHz

20 ±7,5%

20 ±7,5%

20 ±7,5%

20 ±7,5%

20 ±7,5%

20 ±7,5%

Radiate Power

w

< 5

<5

<5

<5

<5

< 5

POWER

kW

0,2

0,2

0,2

0,2

0,2

0,2

FREQUENCY>

Maintaining

Set Temperature

kHz

32 ±7,5%

32 ±7,5%

32 ±7,5%

32 ±7,5%

32 ±7,5%

32 ±7,5%

Radiate Power

w

< 5

< 5

<5

< 5

< 5

< 5

Termocouple Position

Under Crucible

Cruc ible type

With Fixed Ceramic Jacket

Temperature Control

Digital Thermoregulator

Optional

External thermocoup le w ith support

Optional

Optical Pyrometer w ith support ( 1600°C)

Optional

Gas Burner

Optional

Cylinder Microcasting Chamber

Max Cylinder Dimension mm 0120x320h

A INDUCTION MELTING FURNACE IS WHAT?

An electrical furnace called an induction melting furnace heats a charge by inducing an electric current within it, without having direct contact with the induction coil.

An induction furnace is made up of water-cooled hollow copper tubes that can be assembled in various configurations depending on the application; the melting industry often uses copper coils that are cylindrical in shape. According to the Lenz law, a reversing magnetic field is produced when a high-frequency alternating current is fed through this copper coil. Any conductor (charge to be melted) placed in this magnetic field induces an internal circular current known as an Eddy Current. The primary coil and secondary coil are the two coils that make up an induction generator.

The primary coil absorbs current at high voltage, low ampere, and set frequency. The secondary coil changes this current into low voltage, high ampere, and high-frequency current, which is then supplied to the copper coil mentioned in the preceding sentence.

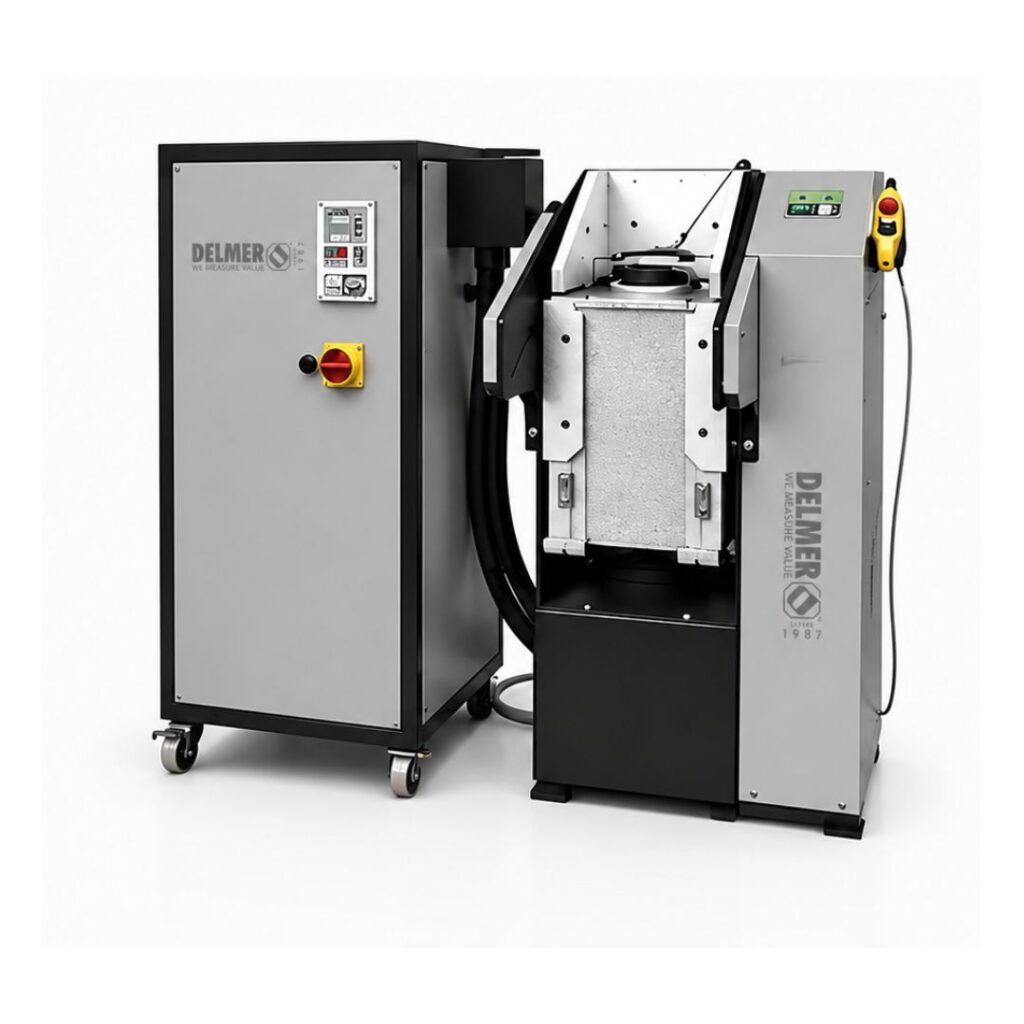

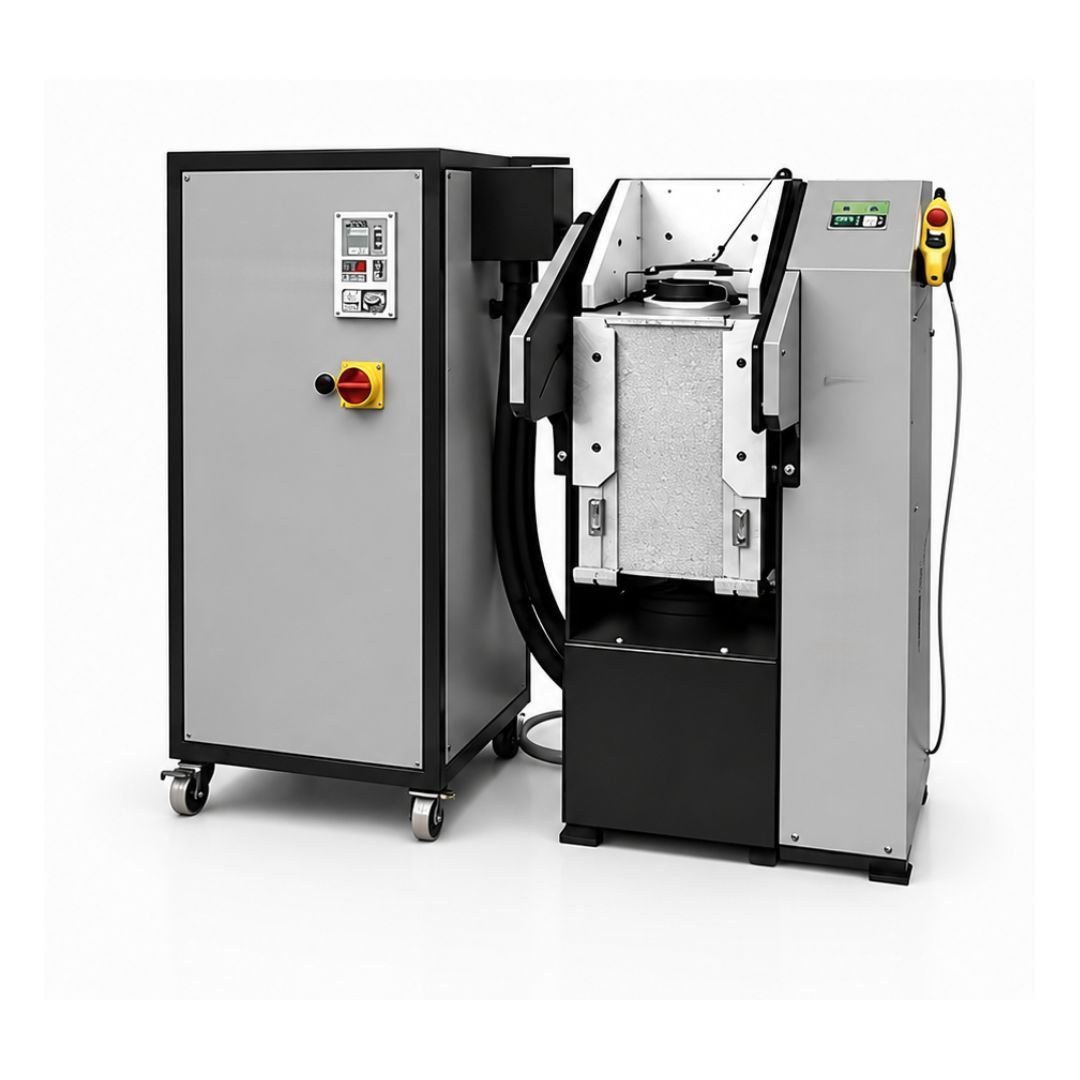

Tilting MELTING Furnace FSB The static tilting furnaces consist of a swivel head which is mounted the heating inductor, connected to the induction of MF via two flexible cables, copper water-cooled. The medium frequency induction circuit with melting high speed is set within a frame built with solid aluminum enclosed by panels powder coated. The swivel head made up of panels Sindanio asbestos-free and aluminum plates mounted on a stable base, the rotation is on two points by a motor acting on a tree where they placed two pulleys. All controlled by a control panel with rollover and emergency.

SPECIFICATIONS

iD – 2 + T

iD- 5 + T

iD – 10 + T

iD – 20 + T

iD – 30 + T

iD – 50 + T

Electrical Power supply

440V Three Phase

440V Three Phase

440V Three Phase

440V Three Phase

440V Three Phase

440V Three Phase

Max. Furnace Power

3kW

10kW

15kW

20 KW

25 KW

35 KW

Useful Capacity (Au)

2 kg

5 kg

10 kg

20 kg

30 Kg

50 Kg

Operating Frequency of converter

<20 KHz

<20 KHz

<20 KHz

<20 KHz

<20 KHz

<20 KHz

Max. Operating Temp.

1200°C

1200°C

1200°C

1200°C

1200°C

1200°C

Dimension

Varies

Varies

Varies

Varies

Varies

Varies

Weight

100 kg

140 Kg

150 Kg

180 Kg

240 Kg

400 Kg

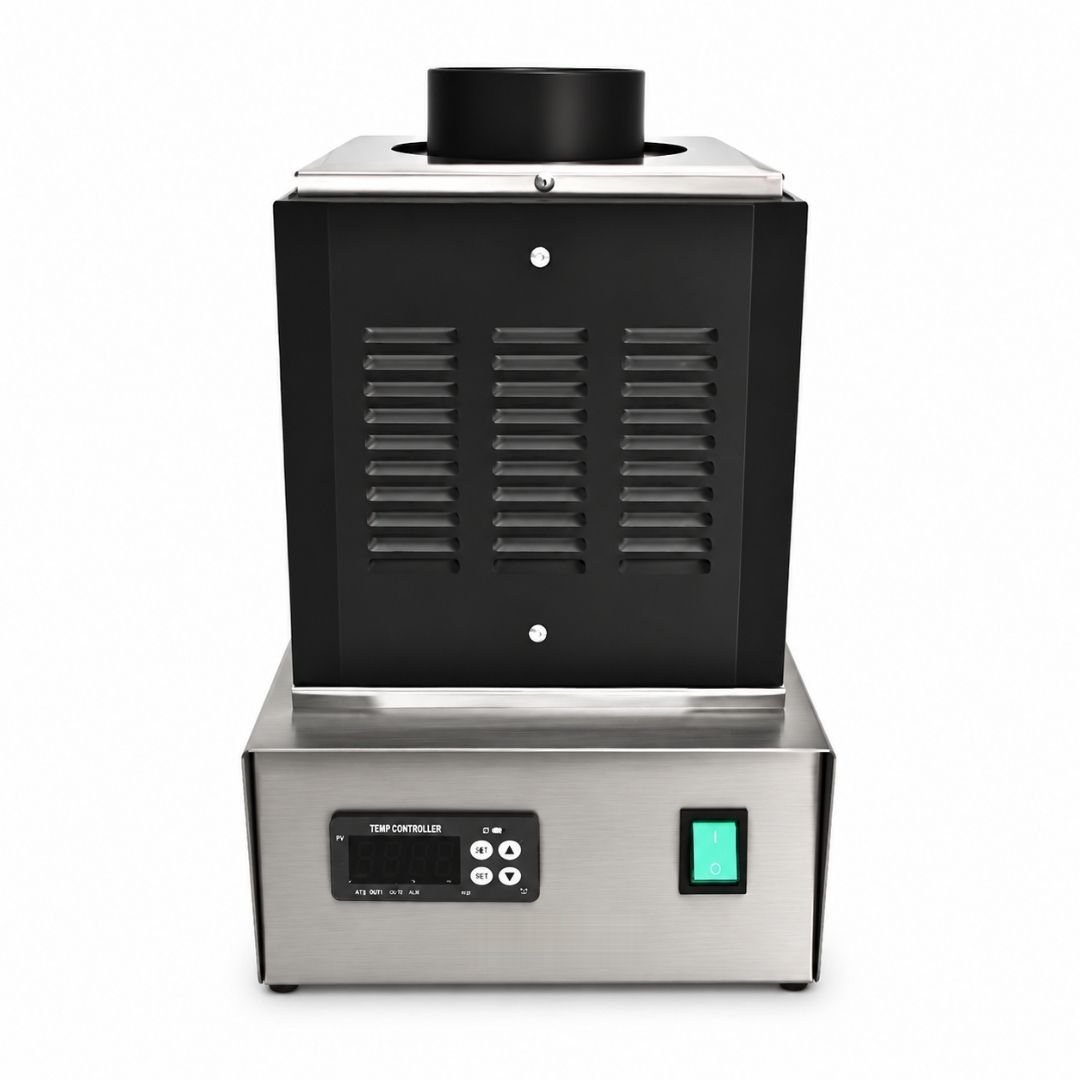

The Automatic Melting Furnace was designed to be a safe and easy-to use electrical method for melting gold, silver and other non-ferrous metals for casting and ingot-pouring applications. It offers precise control of melting temperatures up to 1120°C (2028 °F) through its user friendly, easily programmable controller with LED display. It comes with special kanthal heating element which gives higher operating temperature range and longer life. The glass wool insulated lid holds in heat and keeps oxygen out for a cleaner melt.

Specification of Product:

Features

Brand name

Delmer

Color

Black & grey

Finish type

Rectangular Shape with Bright Enamel finish

Dimension

250X250X400 mm (for all capacity)

Body material

MS & SS

Weight

8 Kg

Country of origin

India

Materials that can be melted

Gold, Silver, Brass, Al & Its alloy.
