OPSOLO UBRZ

Home » OPSOLO UBRZ

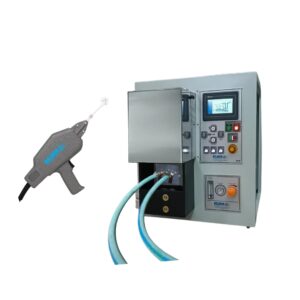

 The OPSOLO UBRZ is a compact and versatile hand-held induction brazing system designed as an environmentally friendly and safe alternative to traditional flame torches. By utilizing induction technology, it eliminates open flames, ensuring a cleaner and safer workplace.


Key Advantages:

  • Consistent Quality – Offers guaranteed repeatability and uniform brazing results.

  • Precision Control – Accurate energy regulation for precise time and power settings for each joint.

  • Eco-Friendly & Safe – No open flame, reducing hazards and improving operator safety.

  • Efficient Operation – Fast heating with minimal energy waste.


Features :

  • Precise Power Control – Adjustable from 0 to 100% of rated power.

  • Flexible Output Regulation – Power and Current control modes.

  • Comprehensive Parameter Monitoring – Current, DC Volts, Output Volts, Output Power, and Frequency.

  • Industrial 5″ LCD Touchscreen – Full-color interface for easy operation.

  • Advanced User Interface – Intuitive design with quick access to settings.

  • Multiple Heating Programs & Profiles – Store and select customized brazing cycles.

  • USB Connectivity – For firmware upgrades and data transfer.

  • Automatic Frequency Scanning & Load Tuning – Optimized performance under varying conditions.

  • Short Heating Cycles – Fast dynamic response for high productivity.

  • Lightweight Hand-Held Unit – Ensures easy access to brazing assemblies.

  • Optional Features:

    • Program and step selection via hand-held unit.

    • 360° rotating ring for mounting to a counterweight system.

  • UBraze Gun Coils:

    • Standard C-shape ceramic-coated coils available in 12 mm, 24 mm, and 40 mm sizes, with 2-turn and 3-turn options.


OPSOLO UBRZ System Reference

OPSOLO UBRZ System

UBRZ 10 kW

UBRZ 12 kW

UBRZ 16 kW

UBRZ 24 kW

Power Supply Model

OPSOLO10

OPSOLO12

OPSOLO16

OPSOLO24

PS Part Number

OUPT-540-100-10

OUPT-540-100-12

OUPT-540-100-16

OUPT-540-100-24

Output Power (kW)

12

12

16

24

AC Line Volts (50/60 Hz)

380/480 VAC ±10%

230 VAC ±10%

380/480 VAC ±10%

380/480 VAC ±10%

Line Phases

3

3

3

3

Weight (lb / kg)

44 (20)

44 (20)

44 (20)

44 (20)

Dimensions (WxDxH)

15.7″ × 12.4″ × 16.1″
(400 × 314 × 409 mm)

15.7″ × 12.4″ × 16.1″
(400 × 314 × 409 mm)

15.7″ × 12.4″ × 16.1″
(400 × 314 × 409 mm)

15.7″ × 12.4″ × 16.1″
(400 × 314 × 409 mm)


Heat Station Model

Heat Station Model

HS-24B

HS Part Number

1ACC-540-100-60

Frequency Range (kHz)

64–150

Weight (lb / kg)

35 (16)

Dimensions (WxDxH)

9.1″ × 16.7″ × 8.1″
(232 × 425 × 208 mm)

Cooling Requirements

Water

Min. Cooling Water (GPM / LPM)

2 (8)

Inlet Water Temp (max)

95°F (35°C)


Handheld Unit

Standard ● Optional ○

Hand-Held Brazing Unit

UBRZ 5

UBRZ 5CP

Part Number

1ACC-754-471-10

1ACC-754-471-00

Dimensions (WxDxH)

3.34″ × 10.9″ × 8.3″
(85 × 277 × 212 mm)

3.34″ × 10.9″ × 8.3″
(85 × 277 × 212 mm)

Weight (lb / kg)

7.8 (3.5)

7.8 (3.5)

Flex Leads Length (ft / m)

6 (1.8)

6 (1.8)

360° Ring for Counterweight Mounting

○

○

Control Display with Program Steps

–

●


Key Benefits

  • Improved Safety: Flameless induction heating eliminates open flame risks.

  • Enhanced Productivity: Faster heating cycles and reduced setup time.

  • Operator Flexibility: Handheld design enables easy access to hard-to-reach areas.

  • Low Maintenance: Durable handheld assembly ensures long service life.

  • Energy Efficiency: Power on demand with rapid, controlled heat cycles.
