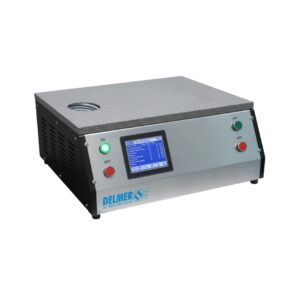

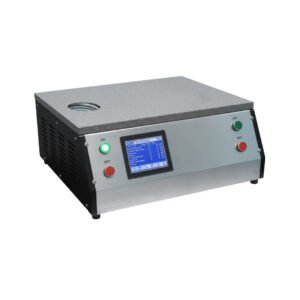

The EasyMelt compact desktop unit is designed for fast and efficient induction melting of small batches. Built with advanced circuitry, it delivers rapid melting with minimal energy consumption, making it both cost-effective and eco-friendly.
These versatile systems can be configured to handle a wide range of metals and alloys, ensuring maximum flexibility for different melting applications. The built-in temperature control system safeguards materials from overheating or burning, guaranteeing consistent and high-quality results.
Crafted with a durable stainless steel front panel and a high-temperature resistant top cover, the EasyMelt unit is engineered for long-lasting, heavy-duty use.
With its compact design, easy installation, low-maintenance requirements, and user-friendly operation, the EasyMelt is the ideal solution for jewellers, laboratories, and small-scale metalworking industries seeking reliable induction melting equipment.
Key Features
-
Adjustable Timer: Set the timer from 1 to 30 minutes with an easy-to-hear alert for convenience.
-
Flexible Power Control: Smooth power regulation from 10% to 100% for precise heating.
-
Integrated Temperature Reader: Built-in sensor for accurate temperature monitoring.
-
High-Performance Temperature Probe: Suitable for models operating up to 1300°C, ensuring efficiency and safety.
-
User-Friendly LED Display: Clearly shows Power, Time, and Temperature for complete control.
-
Optional Water Cooling System: Available upon request for enhanced performance and cooling efficiency.
Model | OPEM – 1G 0UPT-016-550 | OPEM – 1P 0UPT-016-550 | OPEM – 2G 0UPT-016-550 | OPEM – 2P 0UPT-016-550 |
Power (max) | 2.80 kW | 2.80 kW | 2.80 kW | 2.80 kW |
AC Line (50/60Hz), 1 Phase | 230 V ±10% | 230 V ±10% | 230 V ±10% | 230 V ±10% |
Melting Temperature (max) | 1300 °C | 2000 °C | 1300 °C | 2000 °C |
Crucible Capacity | 1 kg Gold | 50–250 g Pt | 2 kg Gold | 200–500 g Pt |
Crucible Volume | 67 cm³ | 21 cm³ | 124 cm³ | 80 cm³ |
Weight (Lb / kg) | 30.9 (14) | 30.9 (14) | 30.9 (14) | 30.9 (14) |
Dimensions (LxWxH) | 15.7″ x 17.7″ x 7.1″ (400 x 450 x 180 mm) | 15.7″ x 17.7″ x 7.1″ (400 x 450 x 180 mm) | 15.7″ x 17.7″ x 7.1″ (400 x 450 x 180 mm) | 15.7″ x 17.7″ x 7.1″ (400 x 450 x 180 mm) |
Cooling Requirements | Water (External) | Water (External) | Water (External) | Water (External) |
Cooling Water (min) | 0.8 LpM (0.21 GpM) | 0.8 LpM (0.21 GpM) | 0.8 LpM (0.21 GpM) | 0.8 LpM (0.21 GpM) |
Inlet Water Temperature (max) | 35 °C | 35 °C | 35 °C | 35 °C |
Key Advantages
-
Enhanced Energy Efficiency: Delivers maximum performance while reducing power consumption.
-
Superior Control: Offers a higher degree of precision and flexibility in operations.
-
Consistent Results: Ensures repeatable outcomes for improved process reliability.
-
Low Maintenance Design: Built for durability with minimal upkeep needed.
-
Boosted Productivity: Speeds up processes for greater output and efficiency.
